Outline Eidos 108 S 8" Installation Subwoofers

🚚 Heavy Item: Don't let shipping stop you! We arrange shipping through PkgPlace to keep costs as low as possible. If you'd like a shipping estimate before purchasing, just give us a call or send us a message—we're happy to provide one. Free local pickup in Toronto is available.

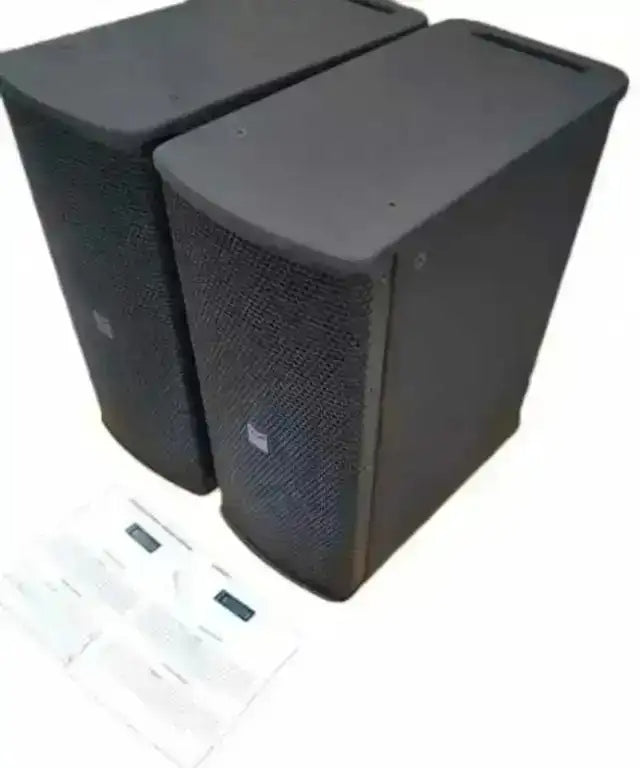

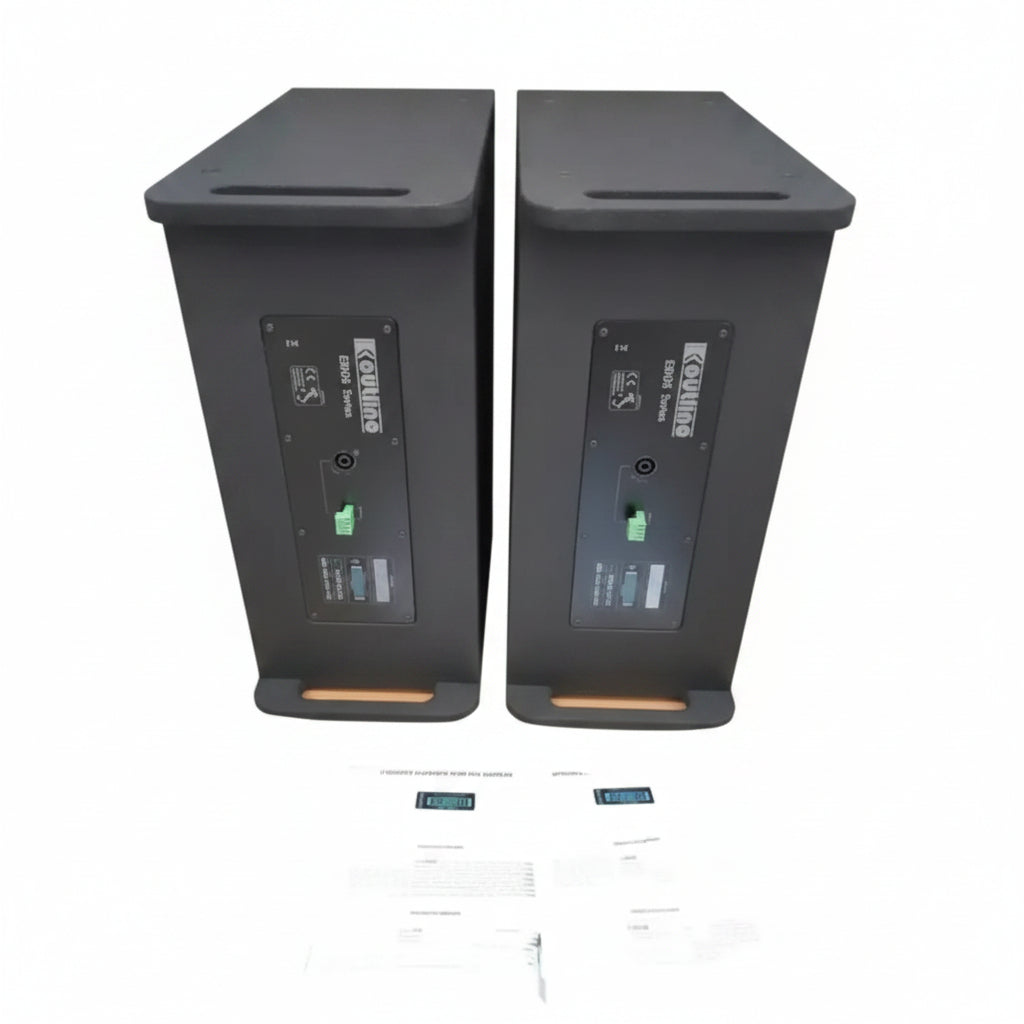

Brand new open box Outline Eidos 108 S 8" Installation subwoofers. Made in Italy.

EIDOS 108S has been designed for venues where low frequencies are needed but discrete placement is required. The compact nature of this cabinet allows installation within the tightest of places. Based on a dual-port band-pass design and utilising a single 8″ drive-unit the EIDOS 108S can faithfully reproduce the lower frequencies down to 38Hz and up to a peak SPL of 118 dB.

All Eidos subwoofers can accurately reproduce the bottom end of the audio spectrum, and are sufficiently dynamic to reproduce all types of music. Performance is very high thanks to the selection and design of the correct components, but also to the careful choice and optimization of the loading techniques that different enclosures require.

The cabinets are built in sturdy phenolic glued 15 mm Baltic birch plywood, that is resistant to damp, even in outdoor applications. Inside, the cabinets bracing as well as the long tuning ports which act as additional rigidity stiffens the panels to avoid vibration. the external finish is in high quality scratch-resistant black paint. The front of the cabinet is protected by an anti-resonant steel grille covered with sound-transparent foam. There are a number of M8 flying points, enabling EIDOS subwoofers to be easily fitted with flying hardware.

Features:

High efficiency high-power sub

Exceptional size-to-power ratio

Deep, very clean low frequencies

Long-excursion woofers fitted with demodulating rings in order to handle peak power values that exceed the loudspeakers’ electrical power capacity

Cabinet internally braced to ensure maximum solidity and prevent coloration due internal resonances.

Extremely compact cabinet (can be easily tucked under bench seating)

Flying points (M8 thread)

Very low weight

Applications:

High quality installations in houses of worship, clubs, lounge bars, Live music-venues, theatres, conference rooms, stores, and shopping centres.

Also suitable for high quality mobile applications, industrial and corporate rental companies.

Specs:

Frequency Response (-10 dB) 36 Hz – 160 Hz

Suggested Cross-Over max 100 Hz

Nominal Dispersion Quasi-Omnidirectional

Impedance (Nom/Min) 4 Ω / 4 Ω

Watt AES (Continuous/Peak) 200 W / 800 W

Maximum SPL Output * 129 dB SPL

Calculated using +10 dB Crest Factor signal @ 1 m, half space

PHYSICAL

Component 1 x 8″ woofer, dual port band pass system

Connectors 1 x NL4 Pins 1+/1-, 4-pin Phoenix

Cabinet Material Baltic birch plywood

Cabinet Finish Black polyurea coating

Grille Epoxy powder coated

Installation Points 16 x M8 threaded points

Pole Mount N/A
